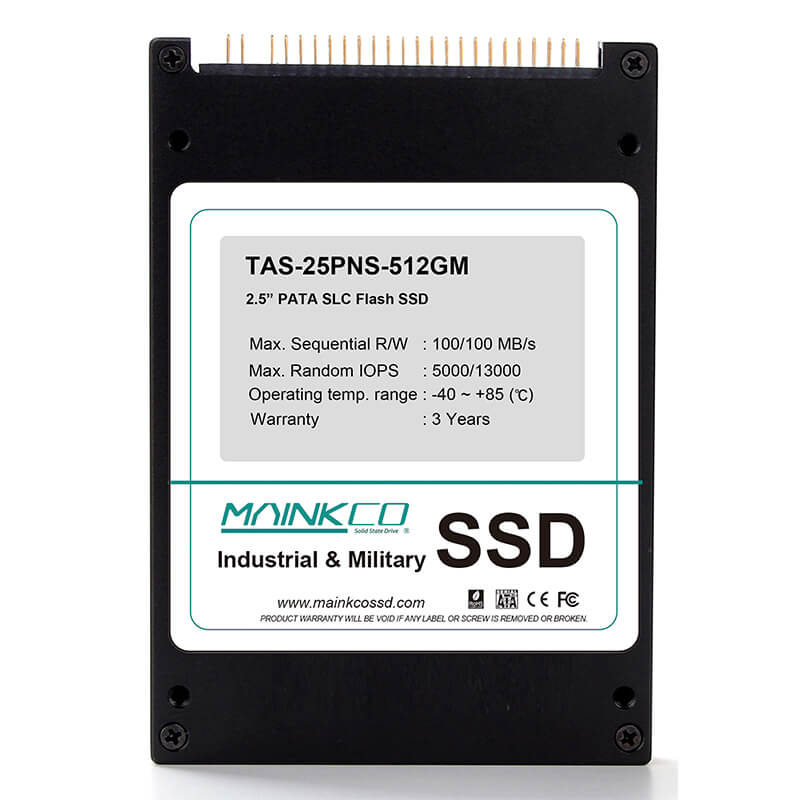

TAS-25PNS
2.5″ PATA IDE SLC Flash SSD, up to 512GB capacity
- Rugged and conformal coating;
- Integral Power fail protection;
- Military Secure Erase (Optional);
- Industrial grade SLC Nand Flash;
- Max. up to 512GB SSD capacity.
Description
Description
Mainkco TAS-25PNS Series SSD is 2.5-inch PATA SLC NAND Solid-state-drive (SSD), which adapts Novachips NVS3600A industrial controller. The SSD provide really long-term stability and reliability. Besides it supports integral power-loss protection based on the unique technology of ultra-big 3F capacitors. The TAS-25PNS has great performance, which is suitable for all kind of industrial and embedded applications. It can support fast secure erase function, and have a long-term supply.
Main features:
● Available in 2.5” PATA Form Factor
● Capacity: 32, 64, 128, 256, 512GB
● Uses Micron SLC (Single Level Cell) NAND flash
● Read/Write Sustained Speed is 100/100 MB/s
● Read/Write IOPS is 5000/13000
● Compliance
-CE Certificate
-FCC Certificate
-ROHS
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2.5W
-Idle/Sleep: 0.5W
● Applied Temperature
-Operating: -40℃ to +85℃
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 100mm
-Width: 70mm
-Height: 9.4mm
● Weight:
-85 grams
● Conformal coating
● Integral Power Fail Protection
● Fast secure erase protocol support
● Warranty time: 3 Years
Specification & Ordering
Basic Specification:
| Form factor | 2.5” PATA |
| Capacity | 32, 64, 128, 256, 512GB |
| Flash type | SLC (Single level cell) NAND Flash |
| Sustained R/W | 32GB: 100/100 MB/s |
| 64GB: 100/100 MB/s | |
| 128GB: 100/100 MB/s | |
| 256GB: 100/100 MB/s | |
| 512GB: 100/100 MB/s | |
| Random IOPS | 32GB: 5000/13000 |
| 64GB: 5000/13000 | |
| 128GB: 5000/13000 | |
| 256GB: 5000/13000 | |
| 512GB: 5000/13000 | |
| Power Management | 5V SATA supply |
| Support Hot Plug/Removal Function | |
| Power Consumption | Active: 2.5W |
| (512GB) | Idle/Sleep: 0.5W |
| Reliability | MBTF: 2 000 000 hours |
| Shock Resistance | 1500G peak, 0.5ms, Half sine |
| Vibration resistance | 20G peak, 20Hz to 2000Hz, Sine |
| Applied Temperature | Commercial grade: 0 ~ + 70℃ |
| Industrial grade: -40 ~ +85℃ | |
| Storage temperature: -55 ~ +95C℃ | |
| Dimension | 100mm x 70mm x 9.4mm (L x W x H) |
| Weight | 80 g |
| Warranty | 3 Years |
| Special features | Conformal coating |
| Power Fail Protection | |
| Optional features | Fast secure erase |
| Certificate | CE/FCC/ROHS |
Ordering information:
| Part no. | Description |
| TAS-25PNS-XC | 2.5” PATA SSD, SLC NAND, NVS3600A controller, 32GB/64GB/128GB/256GB/512GB, 0 ~ +70℃ |
| TAS-25PNS-XM | 2.5” PATA SSD, SLC NAND, NVS3600A controller, 32GB/64GB/128GB/256GB/512GB, -40 ~ +85℃ |
| TAS-25PNS-XME | 2.5” PATA SSD, SLC NAND, NVS3600A controller, 32GB/64GB/128GB/256GB/512GB, -40 ~ +85℃, with secure erase |
