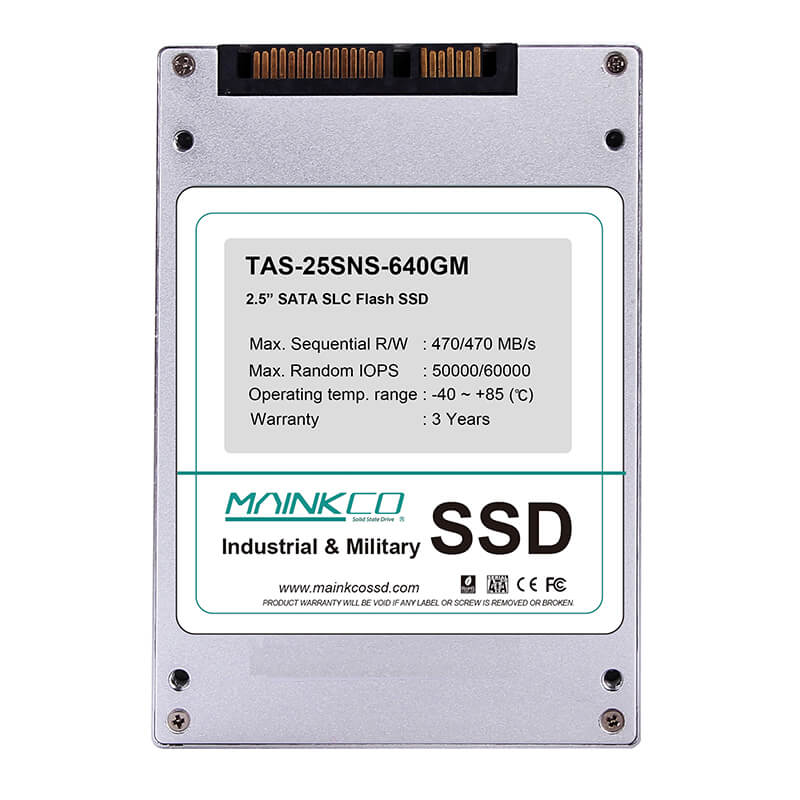

TAS-25SNS
2.5″ SATA-III SLC Flash SSD, up to 640GB
- Rugged and conformal coating;
- Integral Power fail protection;
- Military Secure Erase (Optional);
- Industrial grade SLC Nand Flash;
- Max. up to 640GB SSD capacity.
Description
Description
Mainkco TAS-25SNS series is 2.5-inch SATA-III Solid State Disk with SLC NAND Flash. It carries 256MB DDR which brings higher performance. The TAS-25SNS series SSDs adapt Novachip industrial controller with advanced flash-management algorithm that guarantee the data reliability and enhance the reliability and durability of SSD. The TAS-25SNS supports integral power fail protection feature for industrial and military applications. It is very suitable for high-definition embedded system, video devices, and server and so on.
Main features:
● Available in 2.5” SATA-III Form Factor
● Capacity: 32, 64, 128, 256, 512, 640GB
● Uses Micron SLC (Single Level Cell) NAND flash
● Read/Write Sustained Speed is 470/470MBps
● Read/Write IOPS is 55000/60000
● Compatibility
-Intel Matrix Storage Manager
-Compatible with SATA-I(1.5Gbps), SATA-II(3.0Gbps) and SATA-III(6.0Gbps)
-Support Smart technology
-Support NCQ
-Support Windows Trim command
● Compliance
-CE Certificate
-FCC Certificate
-ROHS
● Power Management
-5V SATA supply
-Support Hot Plug/Removal Function
● Power Consumption
-Active: 2.0W
-Idle/Sleep: 0.3W
● Applied Temperature
-Operating: -40℃ to +85℃ (Industrial grade)
-Operating: 0℃ to +70℃ (Industrial grade)
-Non-Operating: -55℃ to 95℃
● Reliability
-MTBF: 2,000,000 Hours
● Size:
-Length: 100mm
-Width: 70mm
-Height: 9.4mm
● Weight:
-85 grams
● Conformal coating
● Integral Power Fail Protection
● Fast secure erase protocol support
● Warranty time: 3 Years
Specification & Ordering
Basic Specification:
| Form factor | 2.5” SATA |
| Transfer mode | SATA-I, SATA-II, SATA-III |
| Capacity | 32, 64, 128, 256, 512, 640GB |
| Flash type | SLC (Single level cell) NAND Flash |
| Sustained R/W | 32GB: 260/230 MB/s |
| 64GB: 400/320 MB/s | |
| 128GB: 470/470 MB/s | |
| 256GB: 470/470 MB/s | |
| 512GB: 470/470 MB/s | |
| 640GB: 470/470 MB/s | |
| Random IOPS | 32GB: 25000/45000 |
| 64GB: 55000/60000 | |
| 128GB: 55000/60000 | |
| 256GB: 55000/60000 | |
| 512GB: 55000/60000 | |
| 640GB: 5500/60000 | |
| Power Management | 5V SATA supply |
| Support Hot Plug/Removal Function | |
| Power Consumption | Active: 2W |
| (512/640GB) | Idle/Sleep: 0.3W |
| Reliability | MBTF: 2 000 000 hours |
| Shock Resistance | 1500G peak, 0.5ms, Half sine |
| Vibration resistance | 20G peak, 20Hz to 2000Hz, Sine |
| Applied Temperature | Commercial grade: 0 ~ + 70℃ |
| Industrial grade: -40 ~ +85℃ | |
| Storage temperature: -55 ~ +95C℃ | |
| Dimension | 100mm x 70mm x 9.4mm (L x W x H) |
| Weight | 85 g |
| Warranty | 3 Years |
| Special features | Conformal coating |
| Power Fail Protection | |
| Optional features | Fast secure erase |
| Certificate | CE/FCC/ROHS |
Ordering information:
| Part no. | Description |
| TAS-25SNS-XC | 2.5” SATA-III SSD, SLC NAND, NVS3600A controller, 32GB/64GB/128GB/256GB/512/640GB, 0 ~ +70℃ |
| TAS-25SNS-XM | 2.5” SATA-III SSD, SLC NAND, NVS3600A controller, 32GB/64GB/128GB/256GB/512/640GB, -40 ~ +85℃ |
| TAS-25SNS-XME | 2.5” SATA-III SSD, SLC NAND, NVS3600A controller, 32GB/64GB/128GB/256GB/512/640GB, -40 ~ +85℃, with secure erase |
